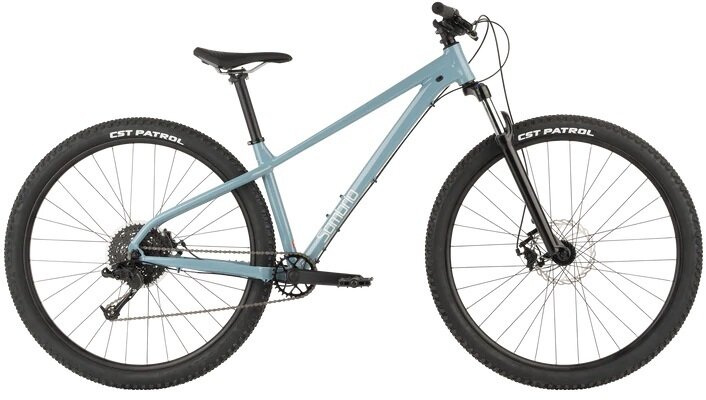

Sombrio Shovel 5
Details
Taking heavy influence from The North Shore and the rigours of modern mountain biking - the Shovel is the cumulative result of what you need to get rolling from your first ride. A starting point for entry into the world of mountain biking. Designed to be easy to use, attainable and most of all - fun.
Specs
| Frame | Frame: Shovel aluminum, disc, 10 x 135mm Fork: Zoom 525, 100mm travel, 9x100mm, adjustable preload Wheels: AM28-29/ Caribou co. disc hubs Shift levers: S-Ride, M300 Rear derailleur: S-RIDE, M300, 8-speed Crankset: PW, 3 pcs, Narrow wide 30T Bottom bracket: Square Taper, 73 x 124.5 mm Cassette: SUGEK, 11-42T, 8-speed Chain: KMC Z8.1 Front hub: Caribou co., 9 x 100mm, 6-bolts disc Rear hub: Caribou co., 10 x 135mm, cassette, 6-bolts disc Rims: Torngat AM28-29 alloy disc, 32h Spokes: 14 g, Stainless steel Tires: CST, Patrol, 29 x 2.25 Saddle: Sombrio Seat post: Sombrio, Ø31.6mm Handlebar: Sombrio, 15mm rise, Ø31.8mm, 785mm Grips: Velo, lock-on Stem: Sombrio, 45mm, 7° Headset: Necio, 1 1/8'' Brake levers: Jieke Brakes: Jieke, mechanical disc Rotors: 180mm/160mm, 6-bolts Pedals: Platform Geometries |
|---|---|
| Fork | Zoom 525, 100mm travel, 9x100mm, adjustable preload |
| Headset | Necio, 1 1/8'' |
| Rims/Wheels | AM28-29/ Caribou co. disc hubs |
| Hubs | FT: Caribou co., 9 x 100mm, 6-bolts disc, Rear: Caribou co., 10 x 135mm, cassette, 6-bolts disc |
| Spokes | 14 g, Stainless steel |
| Tires | CST, Patrol, 29 x 2.25 |
| Crankset | PW, 3 pcs, Narrow wide 30T |
| Chainwheel | SUGEK, 11-42T, 8-speed |
| Bottom Bracket | Square Taper, 73 x 124.5 mm |
| Chain | KMC Z8.1 |
| Rear Derailleur | S-RIDE, M300, 8-speed |
| Shifters | S-Ride, M300 |
| Handlebars | Sombrio, 15mm rise, Ø31.8mm, 785mm |
| Stem | Sombrio, 45mm, 7 |
| Brakes | Jieke, mechanical disc, 180mm/160mm, 6-bolts |
| Pedals | Platform |
| Saddle | Sombrio |
| Seat Post | Sombrio, Ø31.6mm |
* Subject to change without notice.
