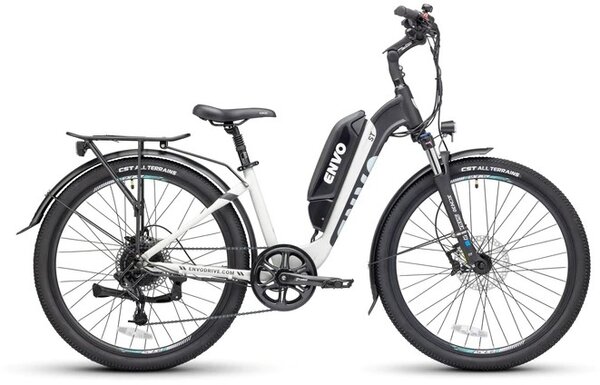

Envo ST
Details
The ENVO ST offers the ultimate accessible mobility. Featuring a low-step design for easy mount and dismount, the ST offers a maximum of 500W of street-legal power and a range of up to 100 km.
store.
Engineered to be a full-featured, no compromise bicycle first, with the added benefit of power assist when you need it. Switch the power off and experience the unparalleled ride quality of this hybrid bicycle.
FEATURES:
ESE – ENVO Sustainable Engineering
Proprietary rear hub motor
Pedal-assist and throttle
Hydraulic disk brakes
Front suspension
Total Weight – 22.5 kg (48.5lbs)
Max Power – 500W
Max Torque – 60 Nm
Range – 100 km
Max Speed – 32 km/h
** Envo e-bikes are subject to a shipping fee of $79.99 charge due to their high shipping weight. **
Specs
| Frame | 27.5 X1.95, Hydro-formed Alloy 6061 TIG welded, |
|---|---|
| Fork | Zoom 595S AMS /SR Suntour, 27.5 X1.95 Suspension fork, with load adjustment and lock, Travel 80mm |
| Headset | thread less headsets, f25.4×44×30mm,22mm,NECO |
| Rims | 27.5?x13Gx36H,alloy double wall, black Spokes Stainless steel black 13G spokes |
| Hubs | F: alloy hub with quick release, hub motor |
| Tires | 27.5?x1.95, black, with AV butyle tube, CSR/CHAOYANG/KENDA |
| Crankset | 3/32?x48Tx170MMx9/16?, alloy crank with single chain ring cover, PROWHEEL PRO- 748P |
| Chainwheel | 3/32?x48Tx170MMx9/16?, alloy crank with single chain ring cover, PROWHEEL PRO- 748P |
| Bottom Bracket | sealed B.B sets, B908 |
| Chain | TEC,C70 |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM X4/SHIMANO ALTUS 8 speeds, |
| Stem | alloy thread-less stem, f25.4*E110mm,adustable, sand black, MA-579, PROMAX |
| Brakes | F/R alloy hydraulic disc brakes, black ,with alloy electric brake lever , Rotor 180, Zoom HB 875-E/Tektro HD-E350 |
| Pedals | Alloy, 9/16? WELLGO |
| Saddle | vinyl top cover, padded with PU, with black ABS ,VELO |
| Seat Post | alloy suspension seat post |
| Accessories & Extras | Front Light: battery light, AXENDO 60 Rear Light: battery light RL13 Rear Carrier: alloy carrier, black Fender: PVC Plastic fender Motor: Brushless 36V/500W max/ Geared rear motor Battery: 36V/12.8AH 3200 LG/Panasonic Lithium battery Charger: 42V 2A CC-CV 240/120V ULc Controller: BLDC Sine-wave controller 17A waterproof connectors. Sensor: PAS/thumb throttle, speed sensor, Display: LCD panel, with 5 assistance levels, power display,750C |
| Color(s) | Color Pearl/Black and Jungle/Black |
| Sizes | 16", 19" |
* Subject to change without notice.
Videos
Envo ST
Envo ST
Part Numbers
| Option | MPN | Store SKU |
|---|---|---|
| Pearl / 15" | ST-15-Pearl | 210000021122 |
| Pearl / 19" | ST-19-Pearl | 210000021126 |
